Project SE86

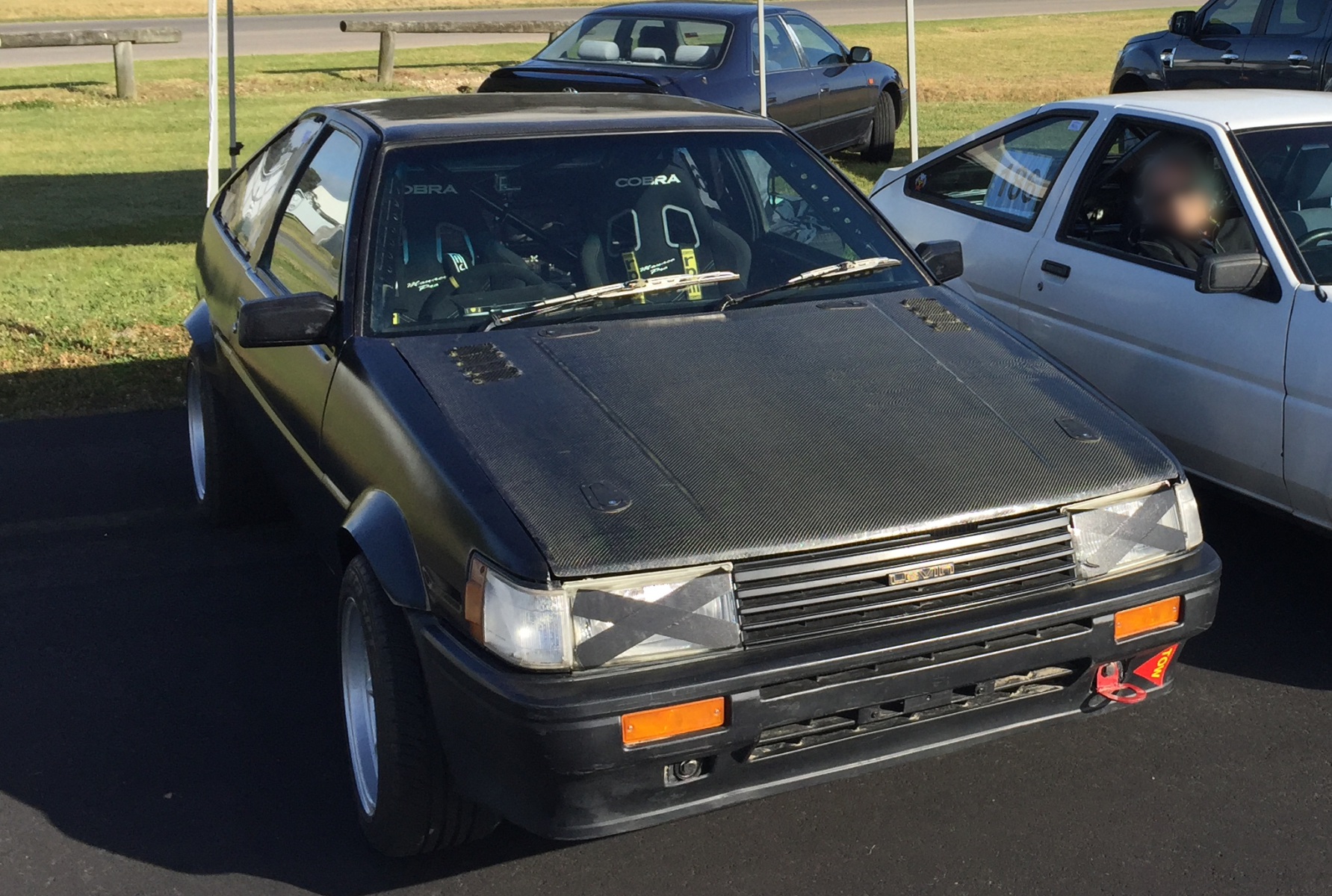

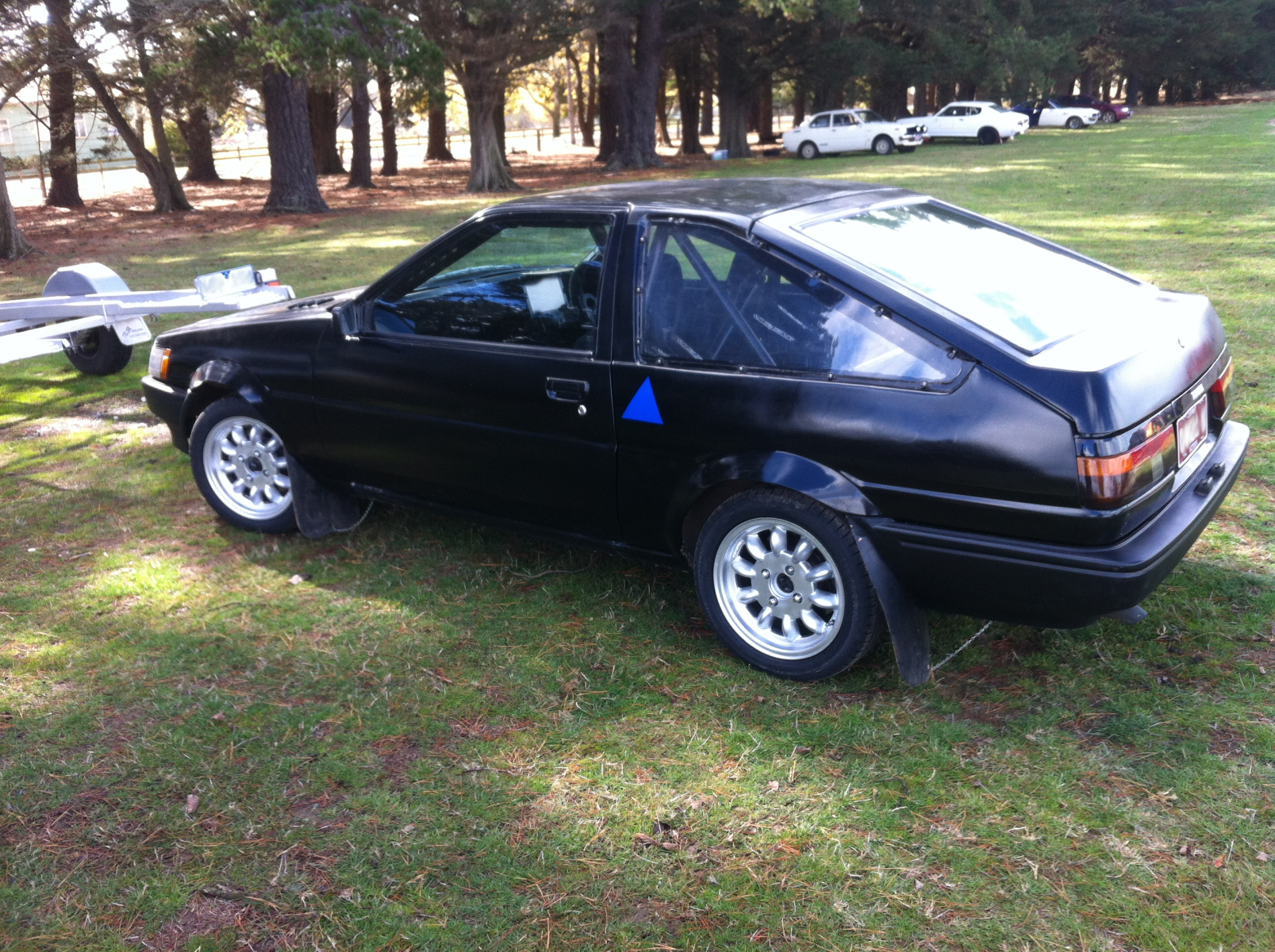

Project SE86 is a club registered thoroughbred race car sponsored by Dekker Volksstam Autosports to showcase various technologies and custom fabrication. Used in tarmac sprints, hillclimbs and autocrosses.

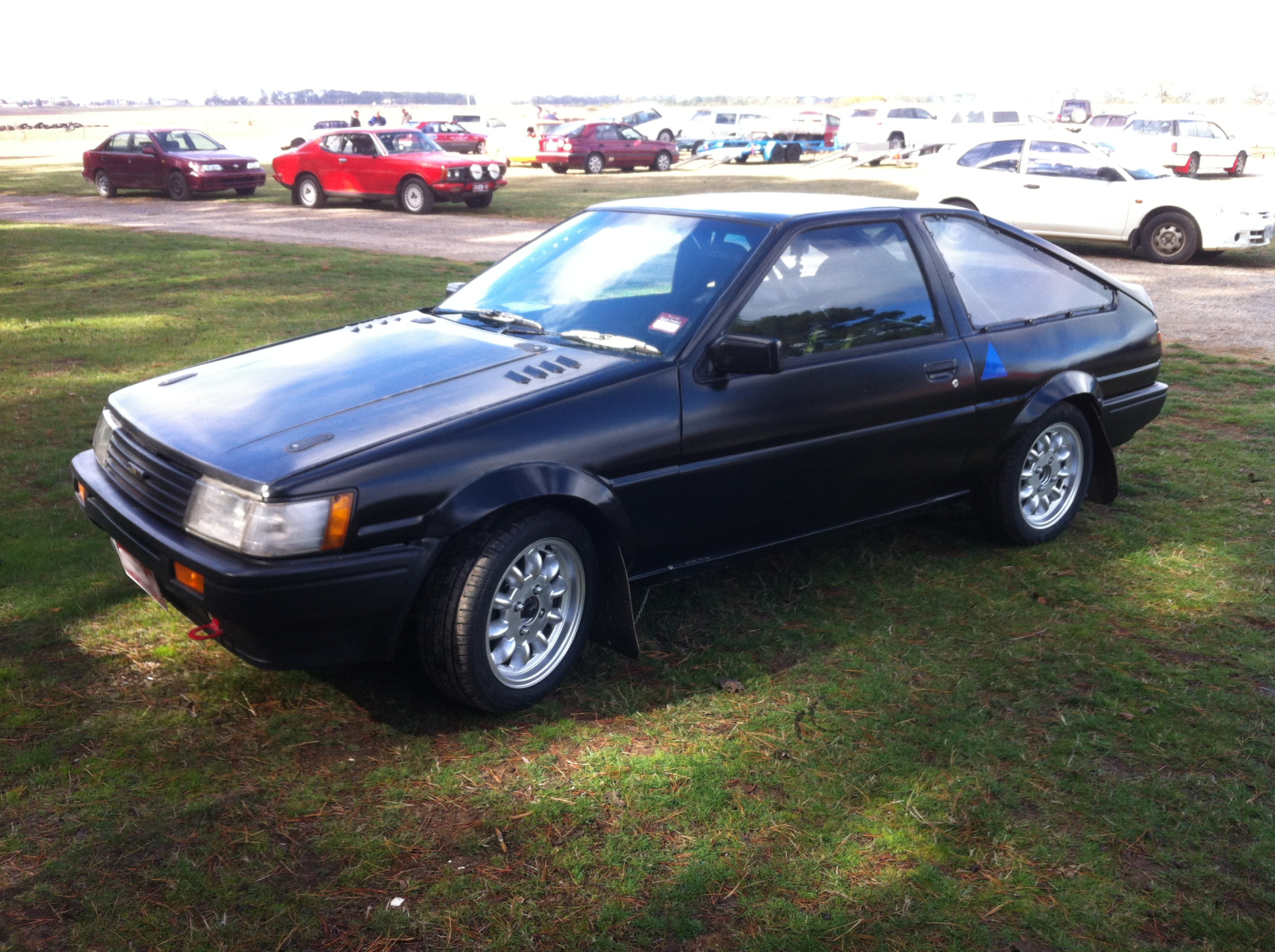

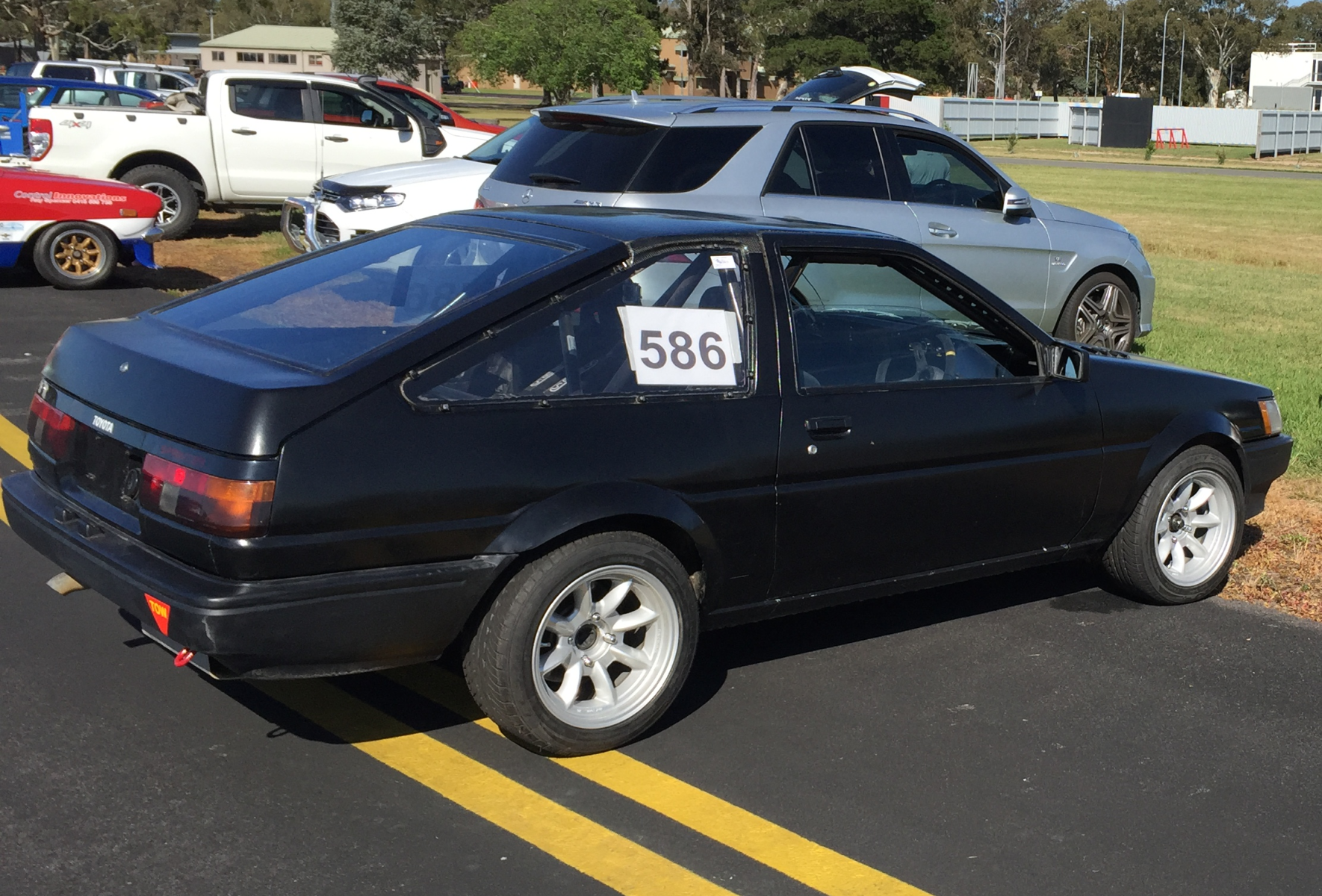

Toyota Sprinter (AE86) 1985

Body

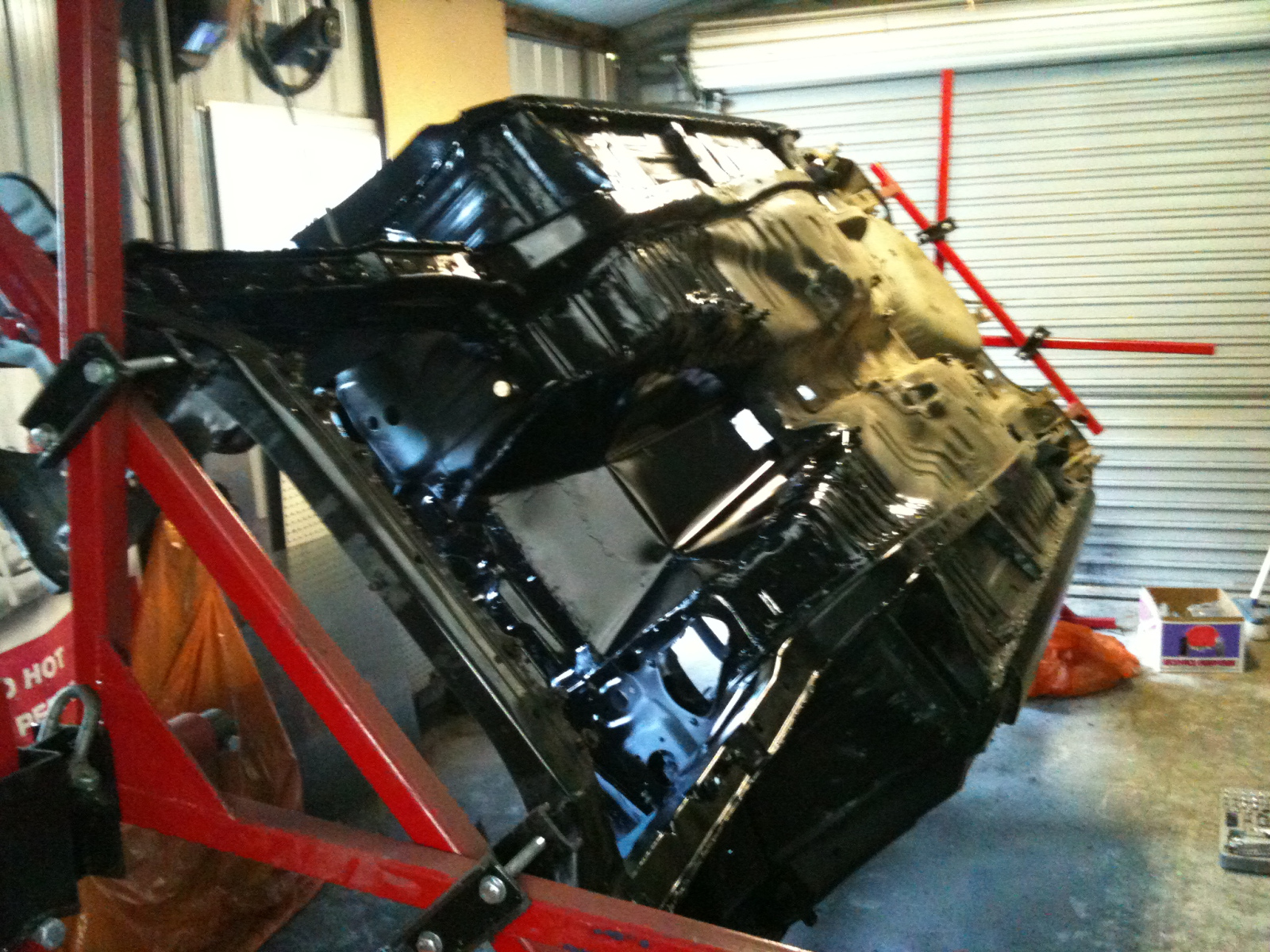

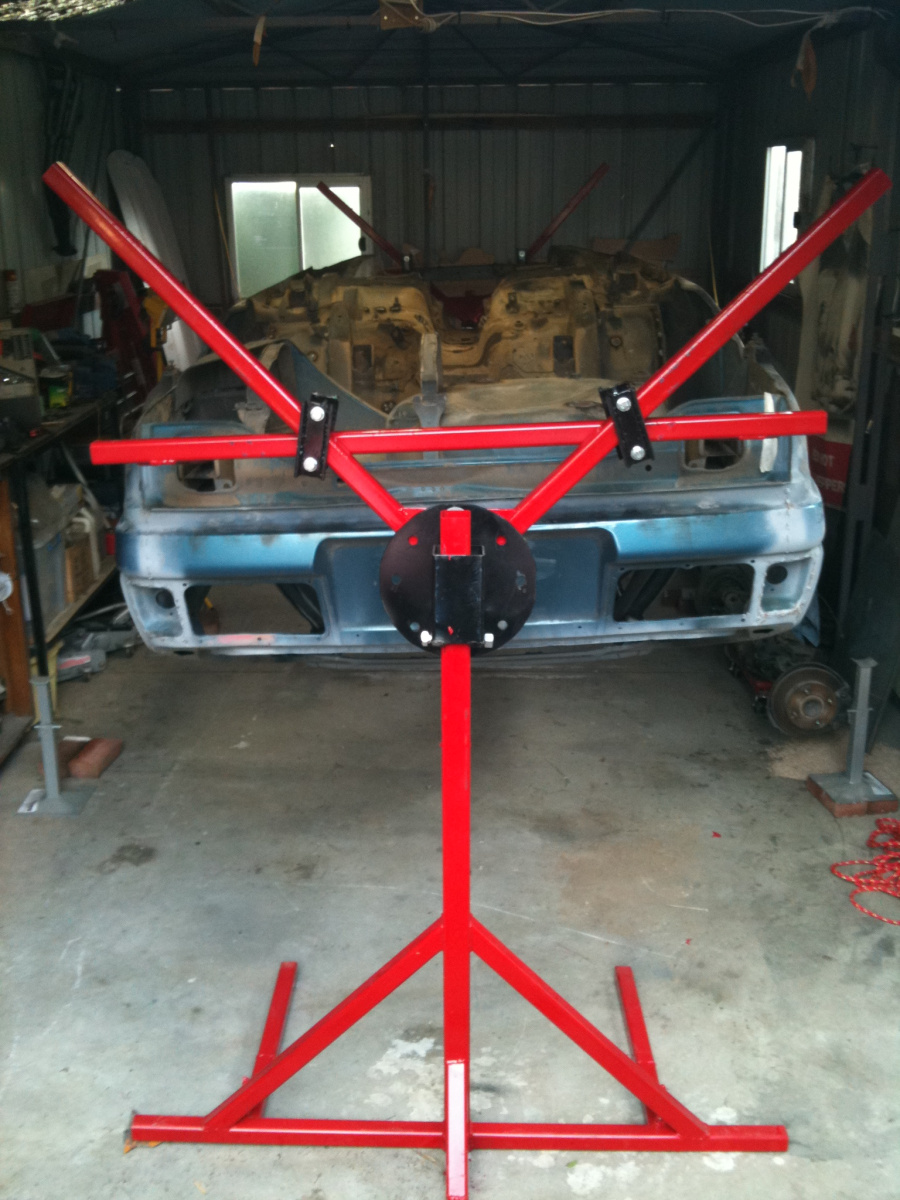

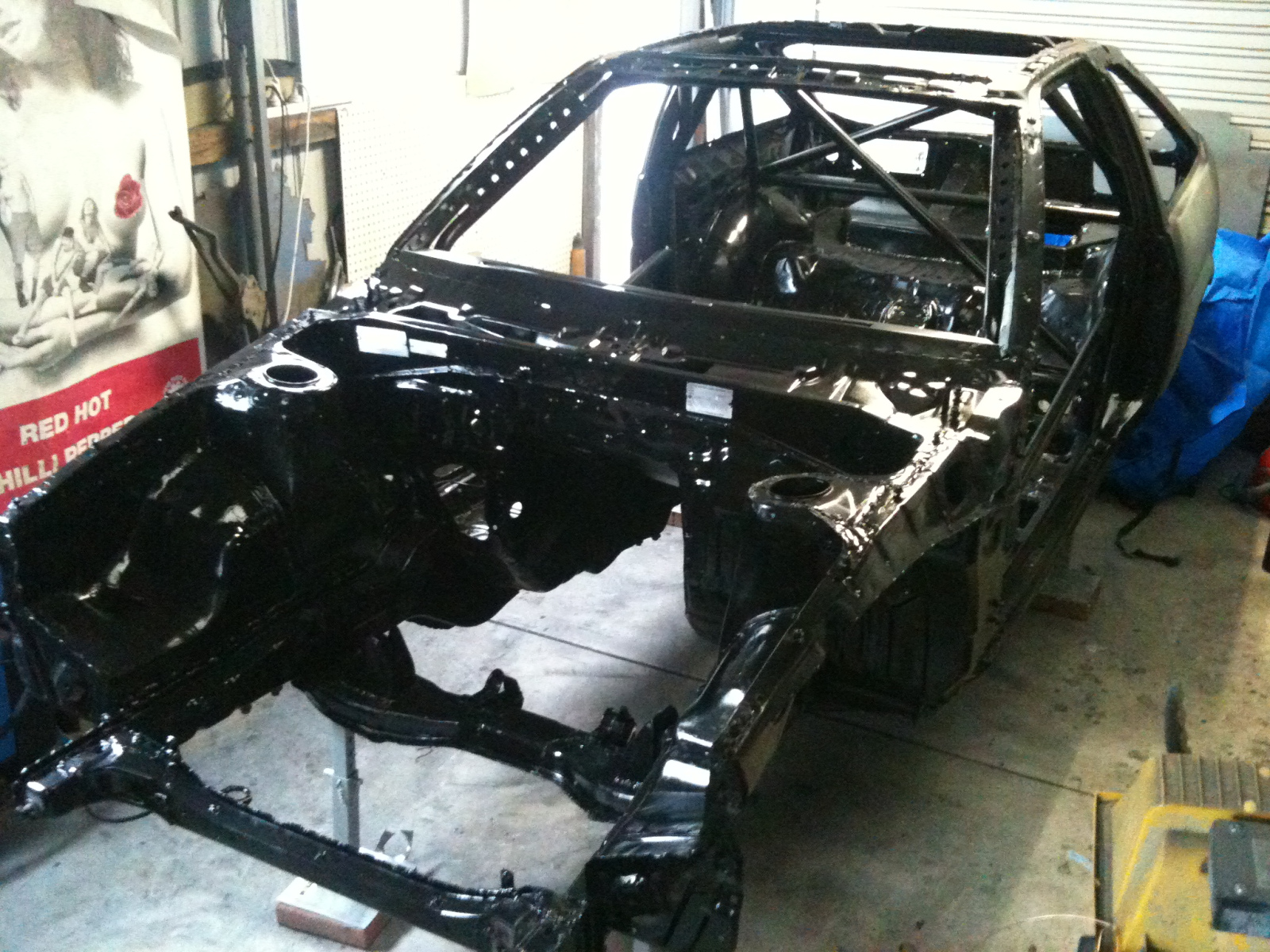

  • Full restoration upon custom built chassis rotisserie
  • Seam welded

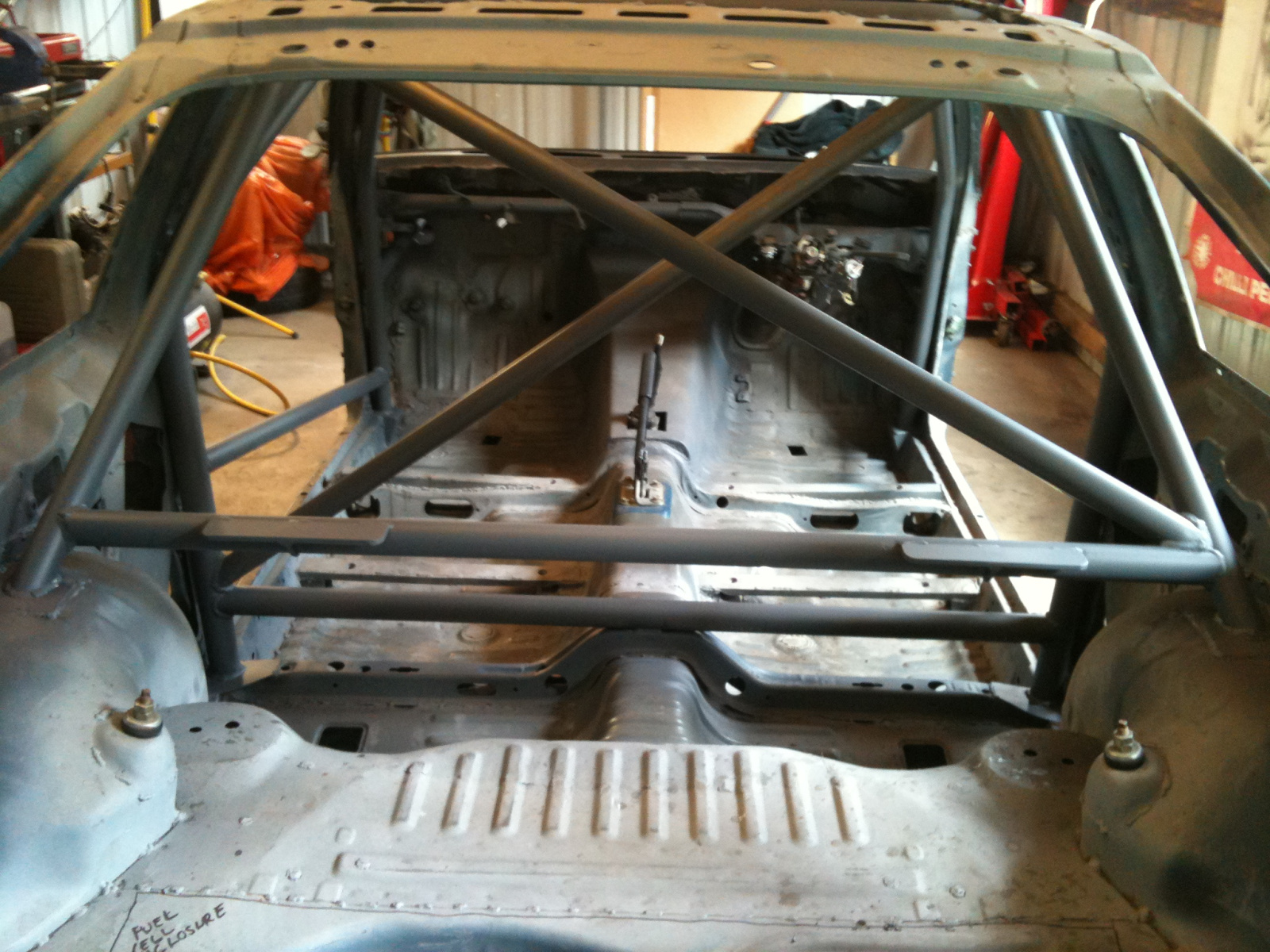

  • 6-point CAMS approved welded in rollcage, mounted through firewall to front strut towers

Engine & Drivetrain

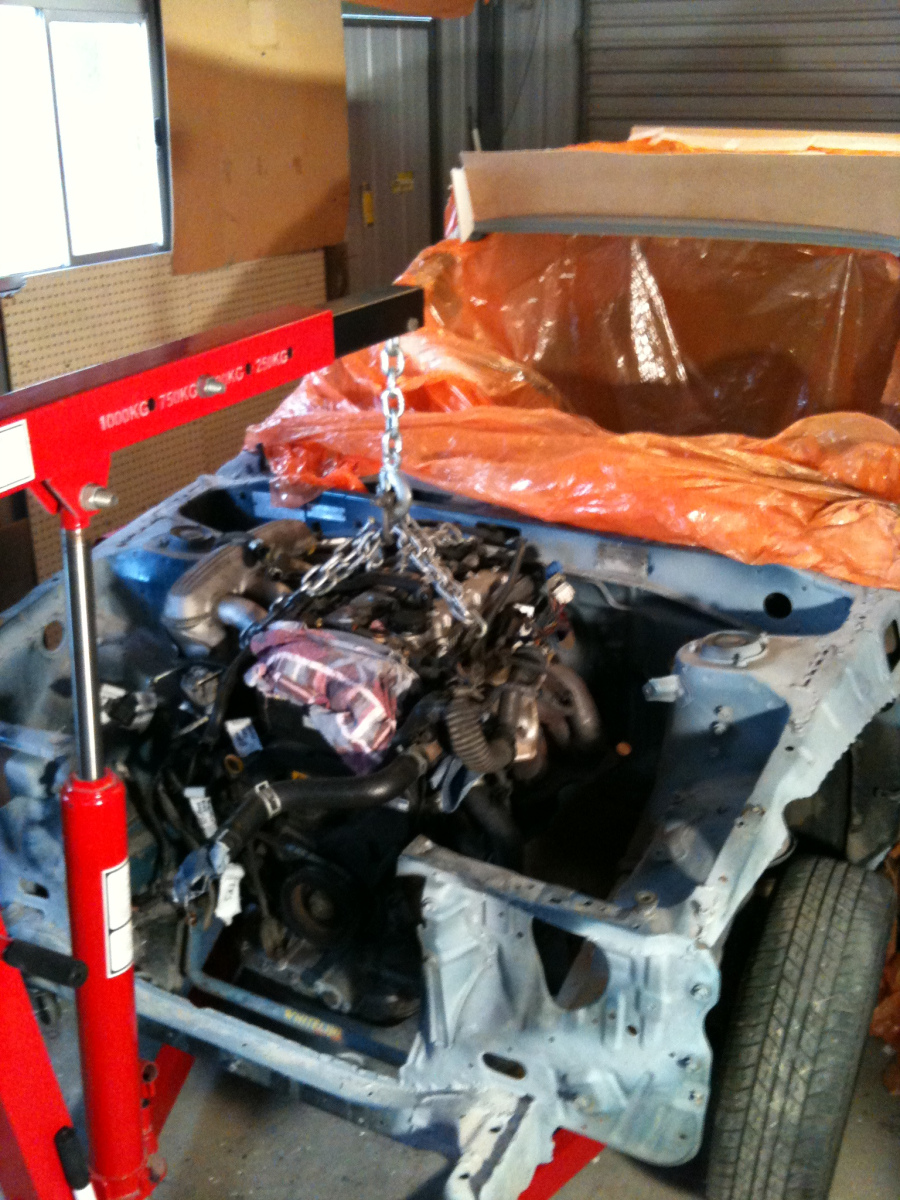

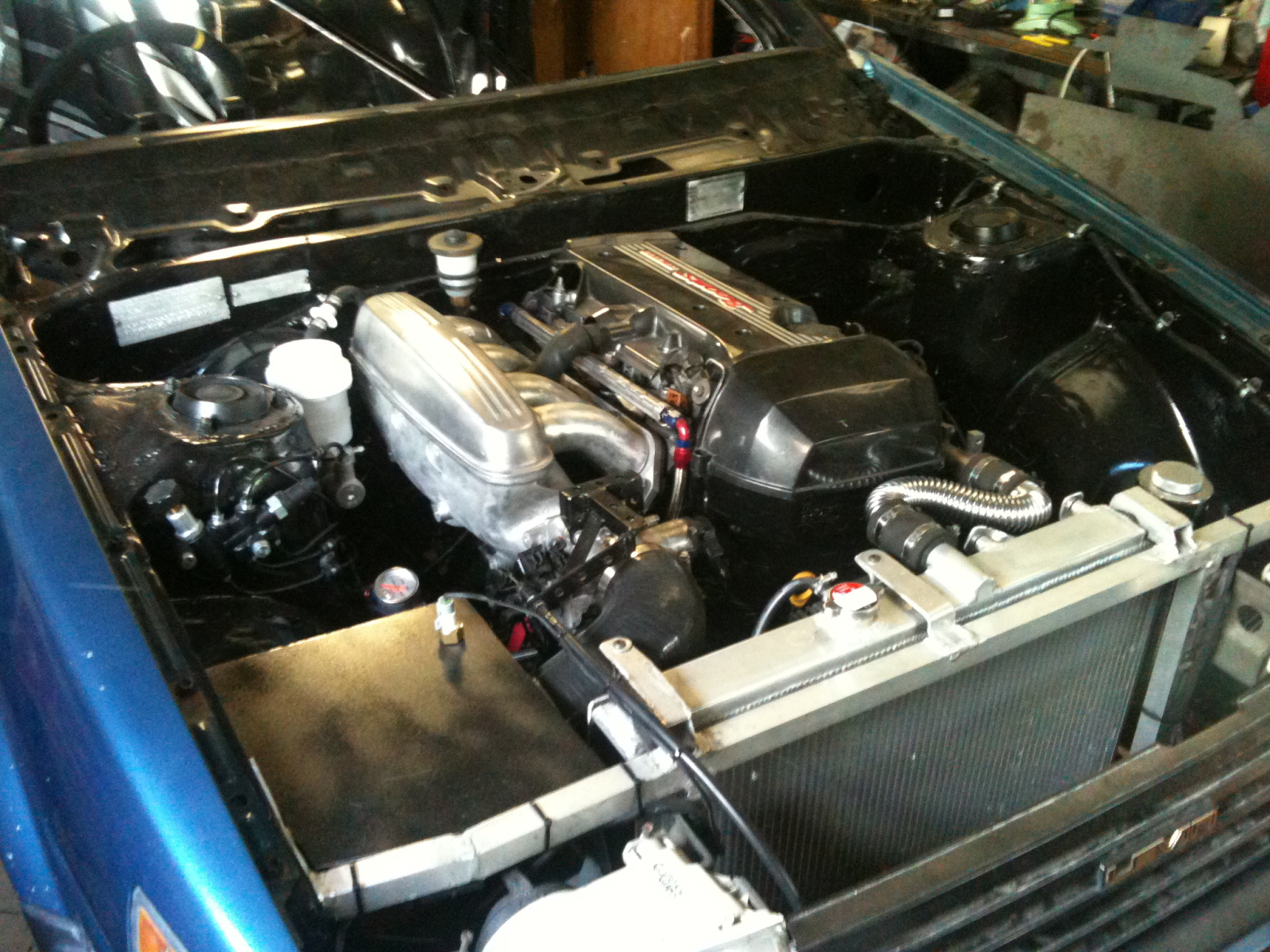

  • 3S-GE 2lt BEAMS 4cyl engine and J160 6-speed gearbox from SXE10 Toyota Altezza (RS200)
  • TODA lightweight flywheel & clutch kit
  • 1UZ-FE throttle body mounted with custom adapter plate
  • AE101 Toyota Corolla twin-core aluminium radiator
  • Custom engine/gearbox mounts

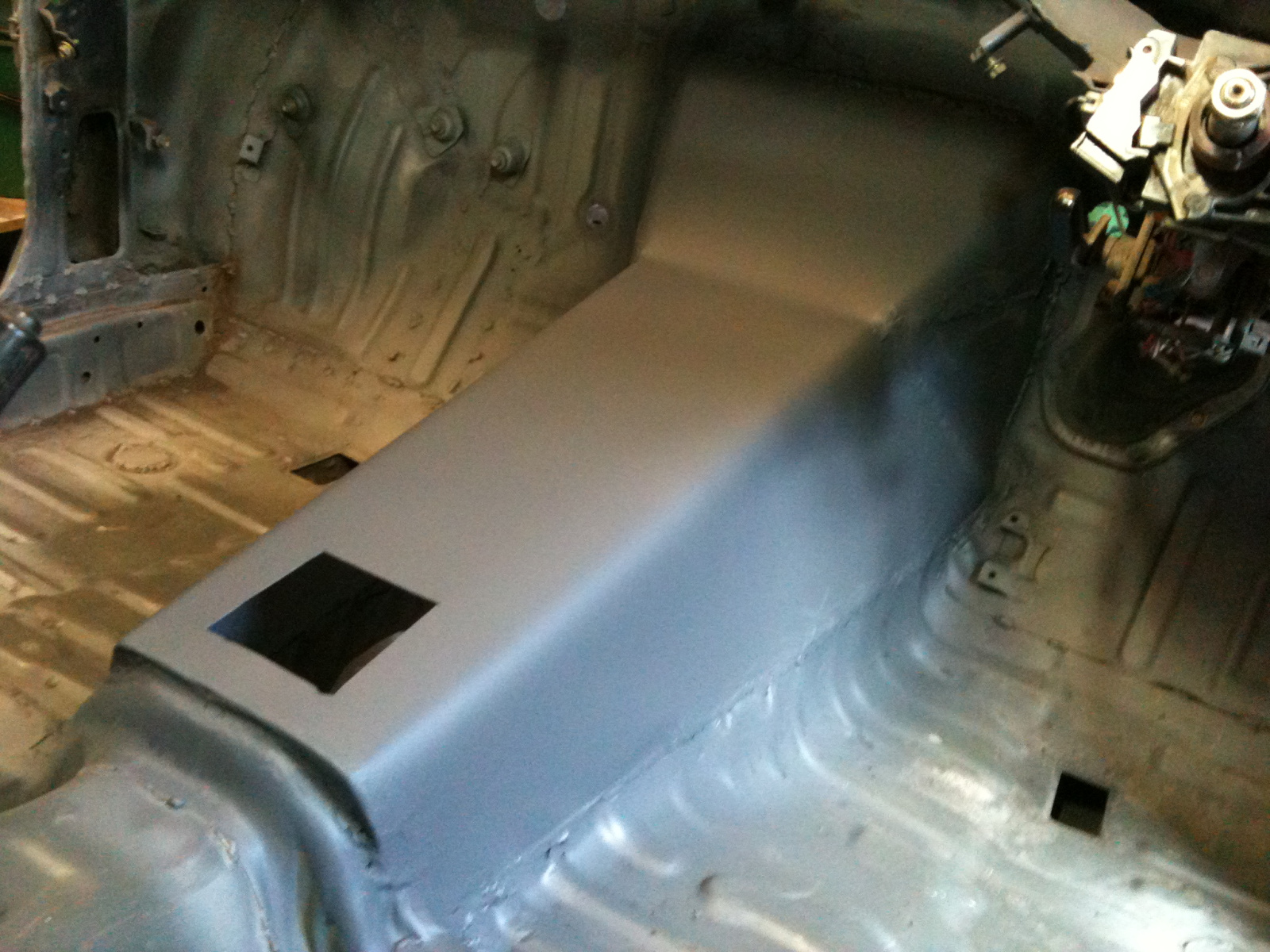

  • Custom transmission tunnel
  • Custom tailshaft

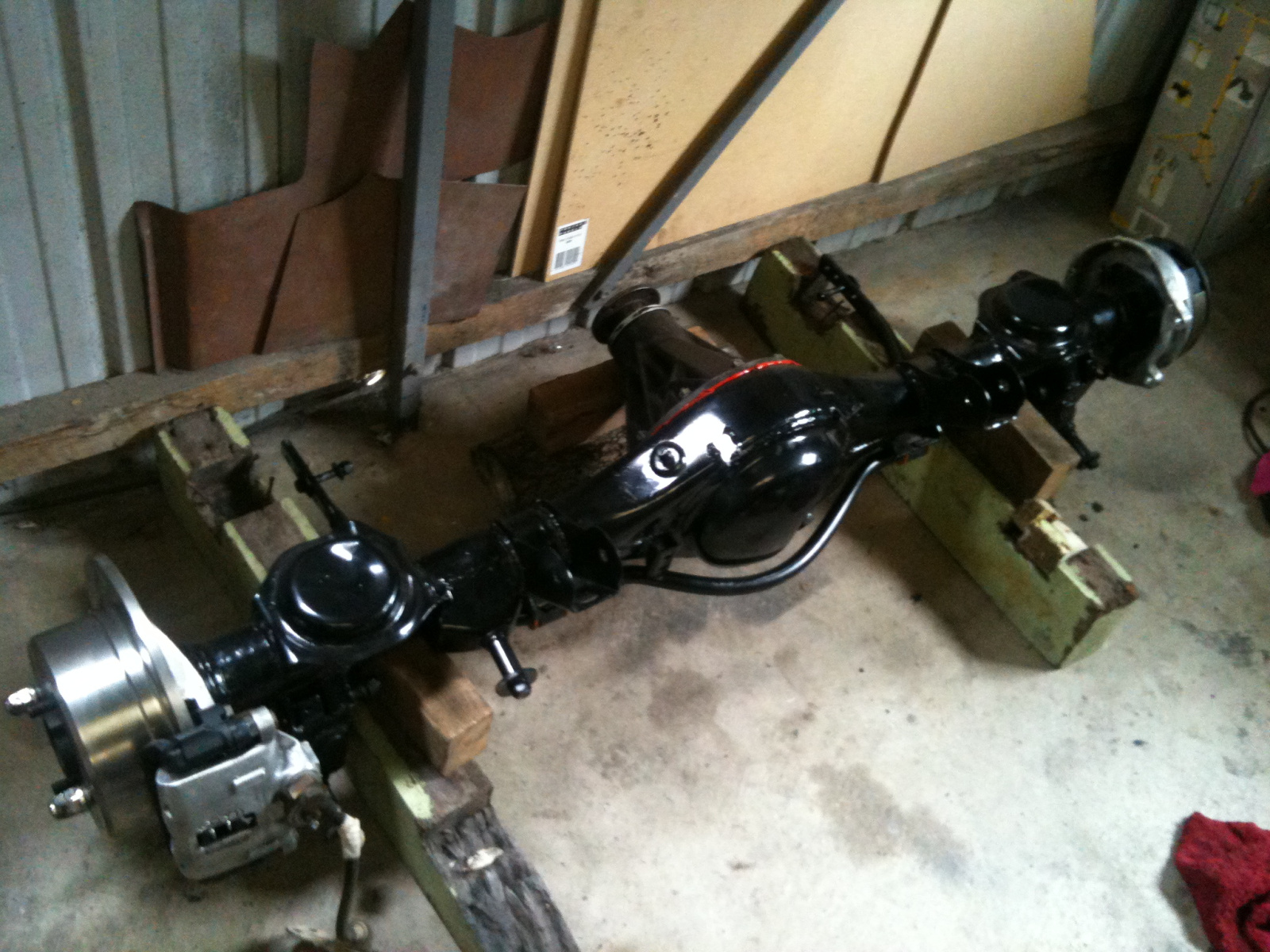

  • YR22 Toyota Tarago F-series rear axle with 4.3 ratio
  • 2-way TRD LSD centre

Fuel

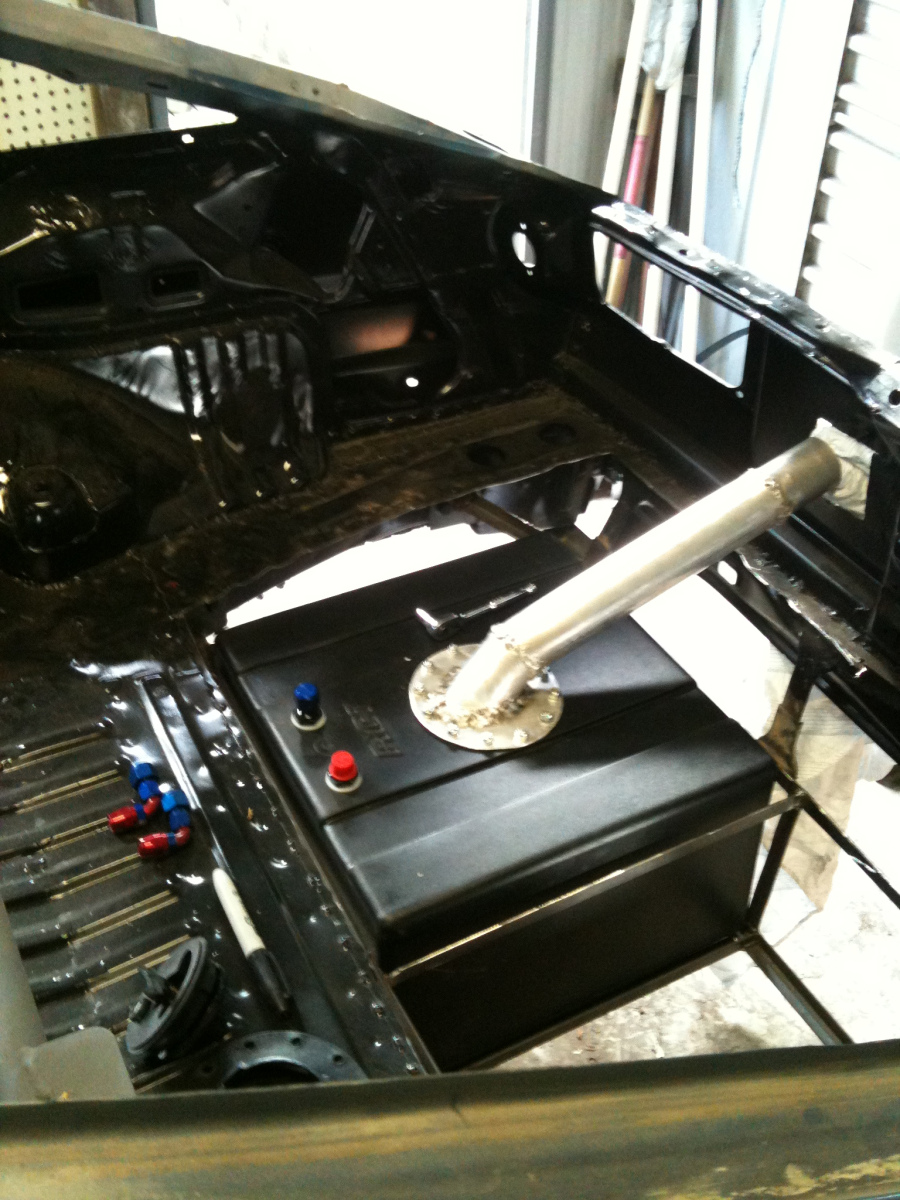

  • Jazz 45lt race fuel cell
  • 2lt surge tank
  • Lift pump
  • Bosch 044 fuel pump
  • Full Speedflow fuel system connectors and braided fuel lines

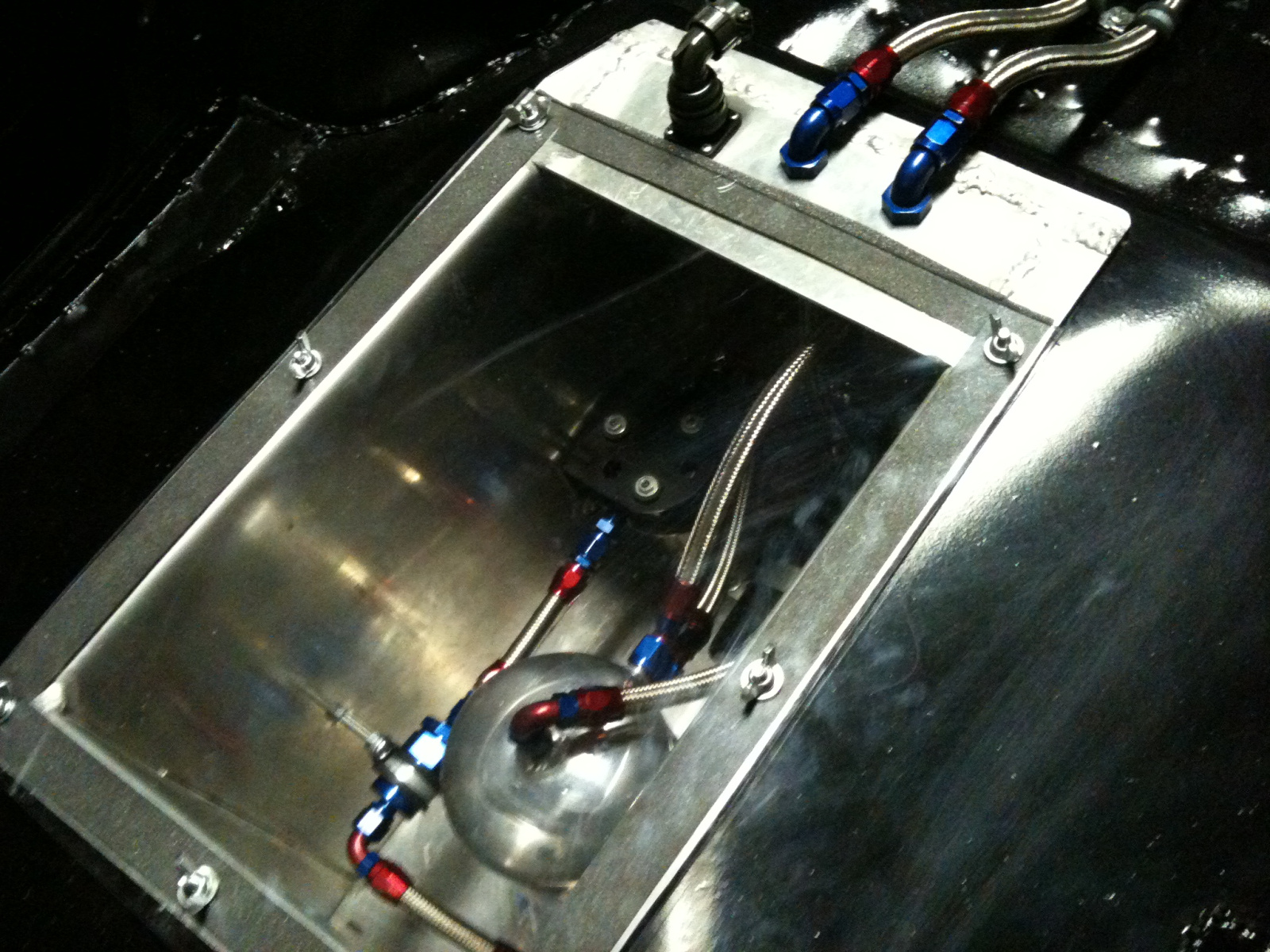

  • Custom fuel cell/surge tank enclosure
  • Fill nozzle relocated to underneath rear numberplate

Suspension

  • Koni adjustable shock absorbers (font & rear)
  • King springs (front & rear)
  • Whiteline adjustable swaybars (front & rear)
  • Whiteline adjustable panhard rod
  • Adjustable rear upper control arms
  • Rear traction brackets

Brakes

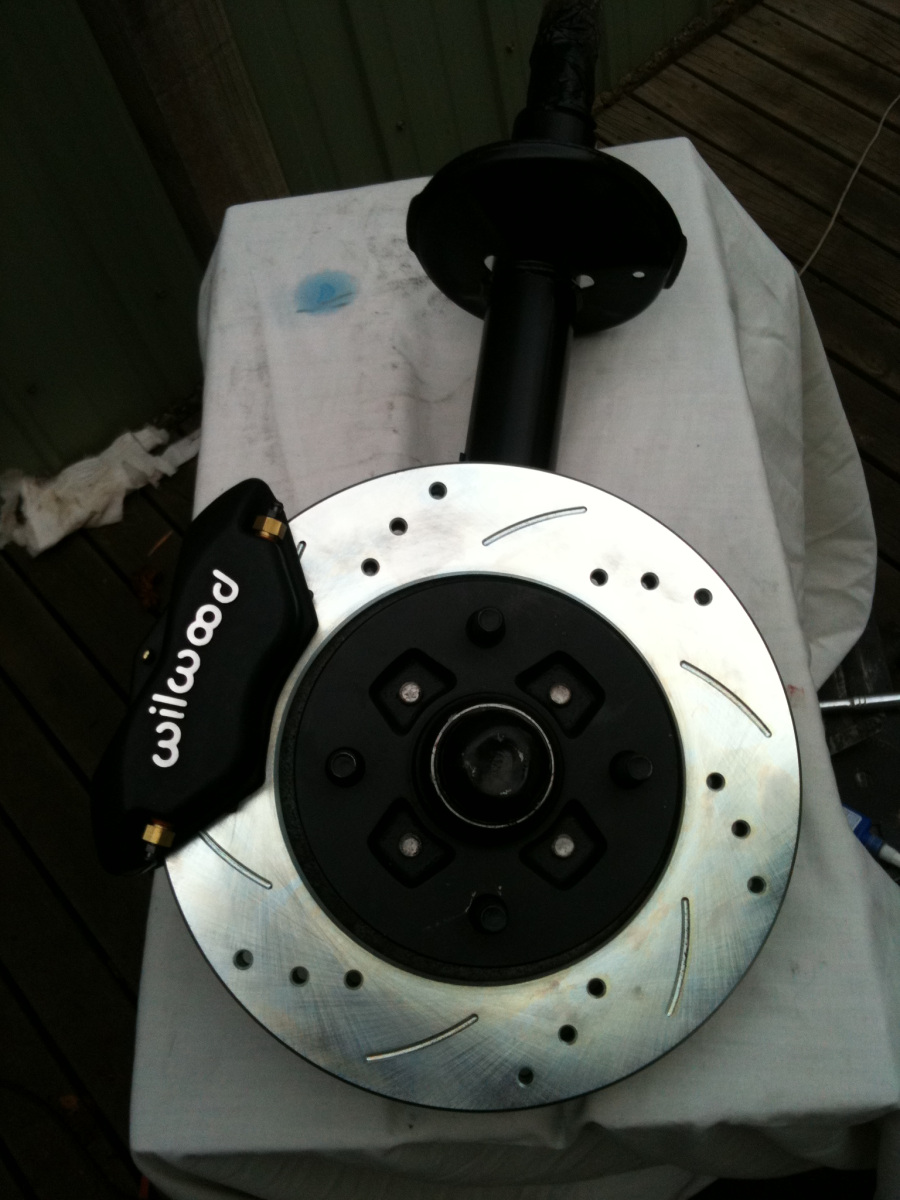

  • Front: Techno Toy Tuning Wilwood Big Brake Kit
  • Rear: ST141 Corona Avante discs and calipers adapted to Tarago rear axle

Electrical

  • Adaptronic Select e420d engine management computer
  • Innovate Motorsports MTX-L wideband air/fuel sensor/gauge
  • Acer A500 Android tablet running custom built dash/dataloging app
  • Full custom wiring
  • Mil-spec plugs for all firewall/exterior loom connections

Exterior

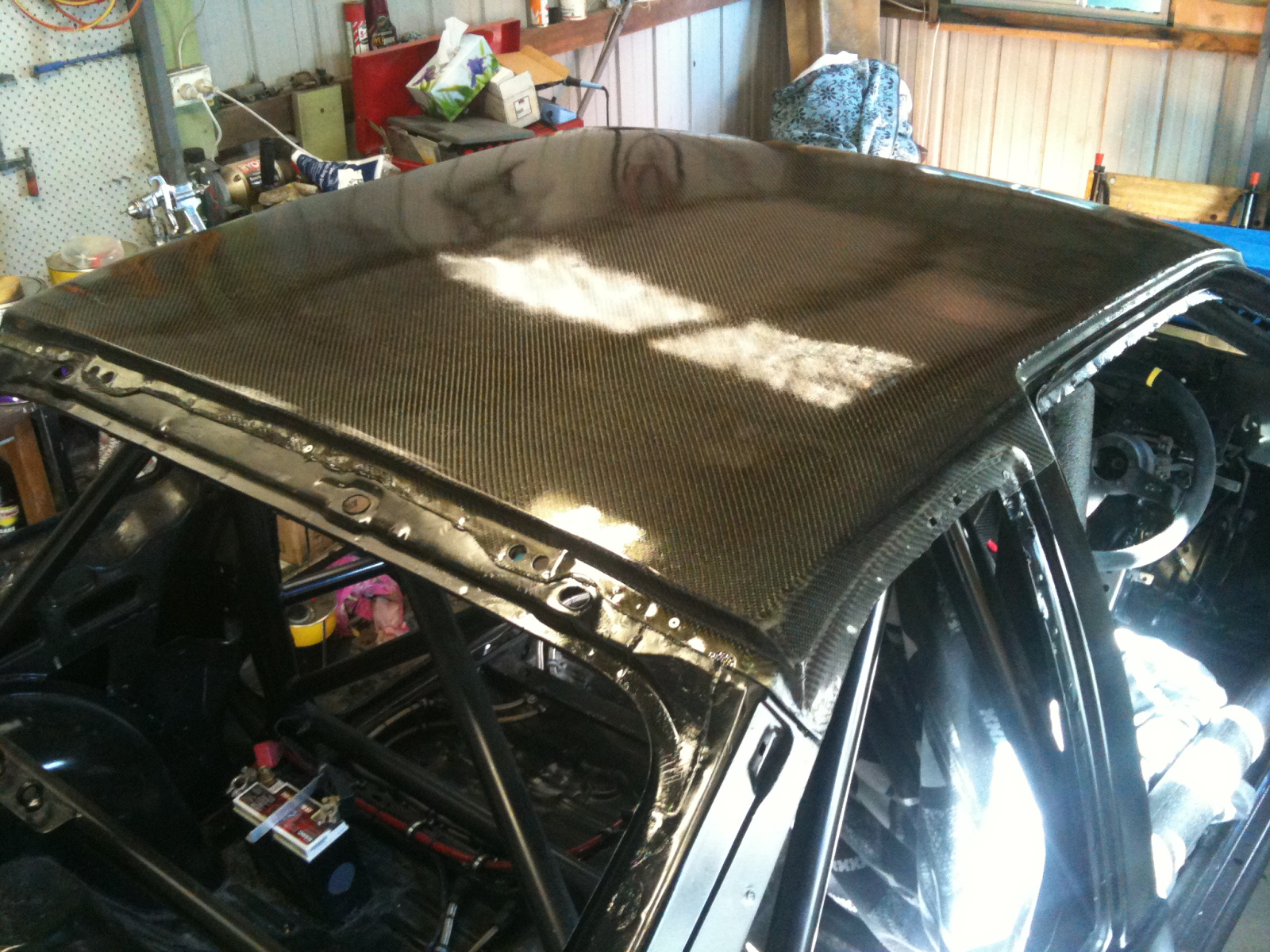

  • Custom carbon fibre roof skin (~1.5kg)
  • Polycarbonate window kit (5 windows: doors, rear quarters, hatch)

Interior

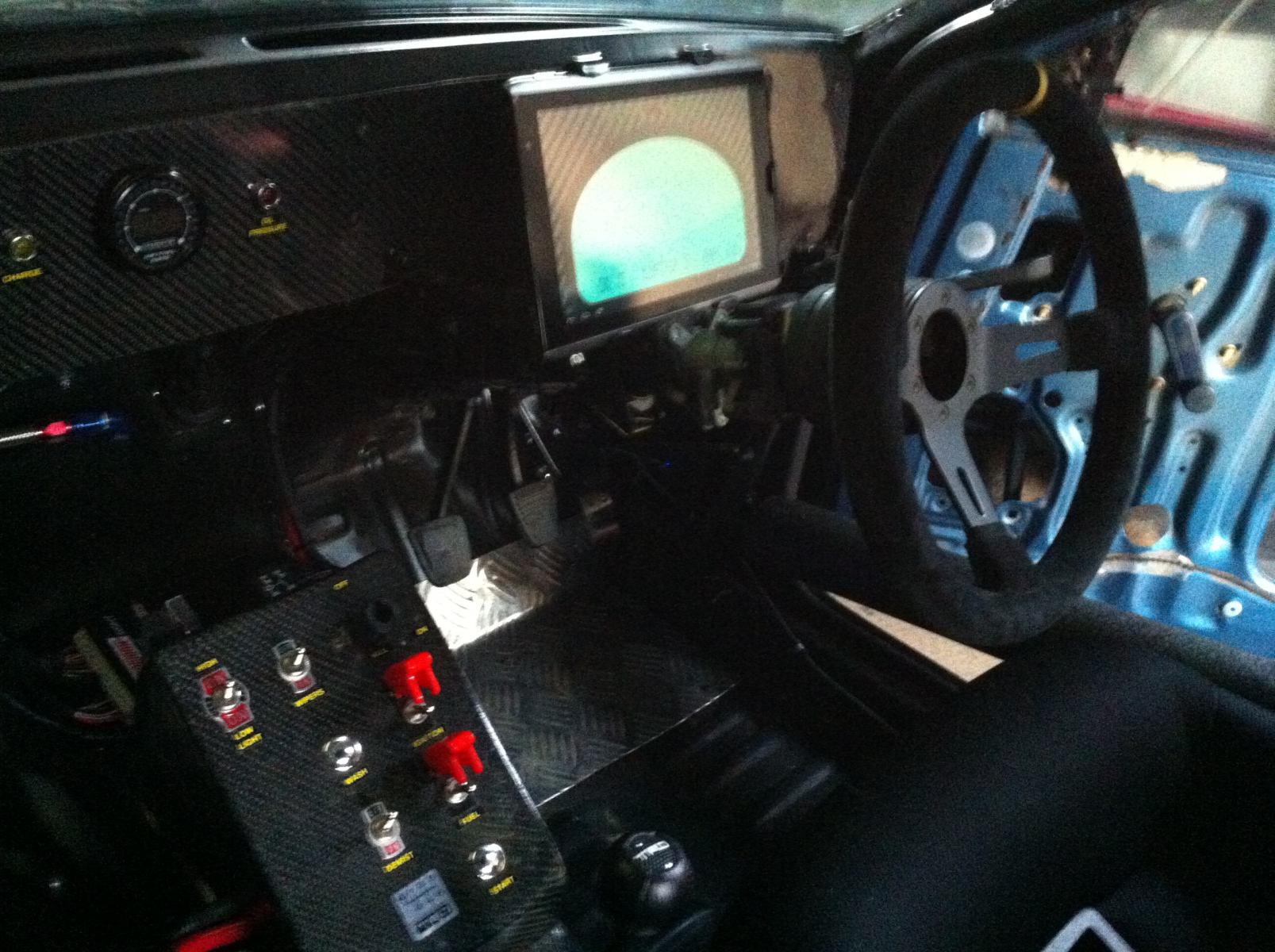

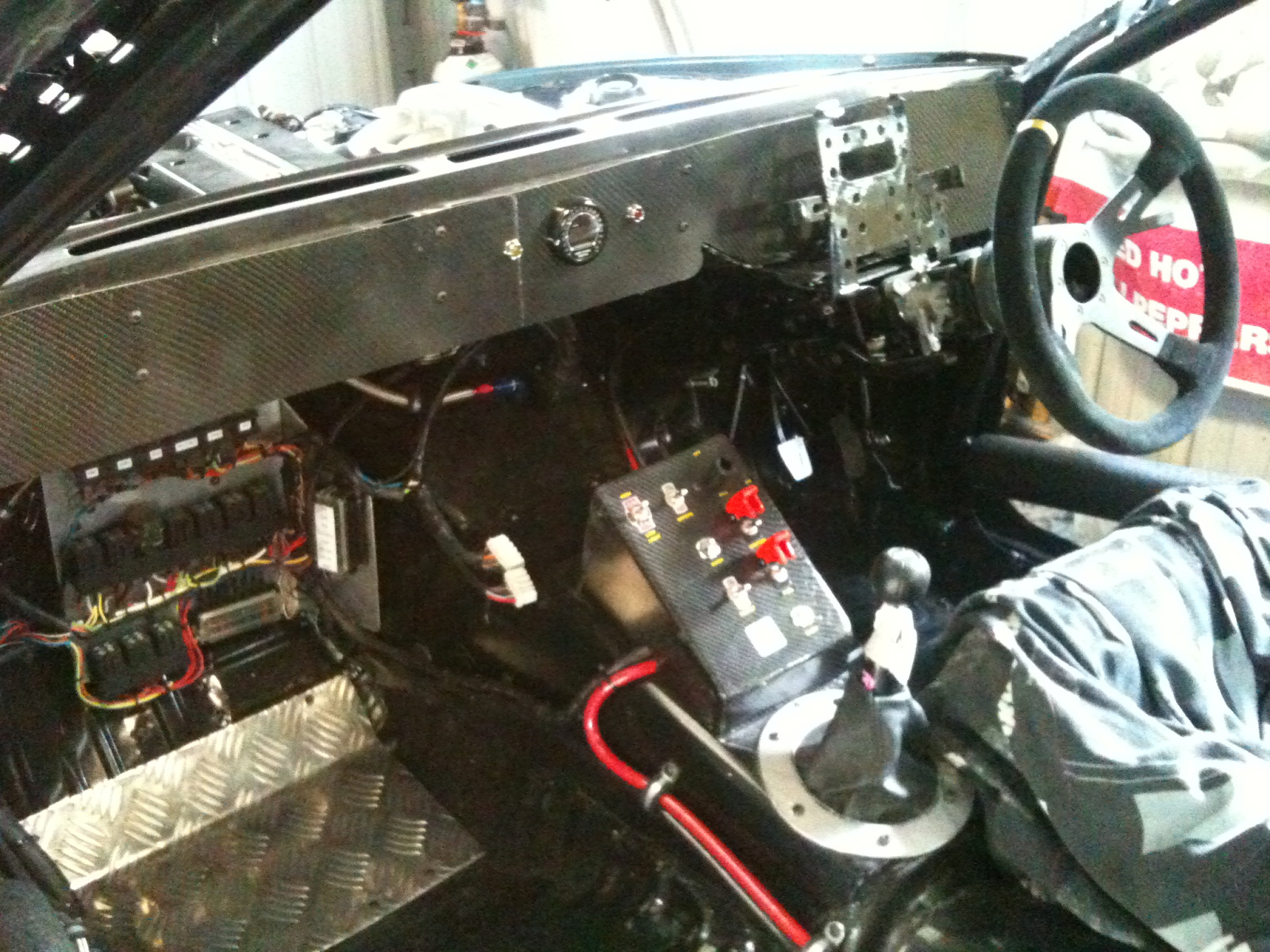

  • Custom carbon fibre dash
  • Custom carbon fibre switch panel
  • Cobra Monaco Pro race seats
  • RPM race seat mounts
  • RPM 4-point race harness
  • RPM race steering wheel
  • 12v dry cell battery

Wheels

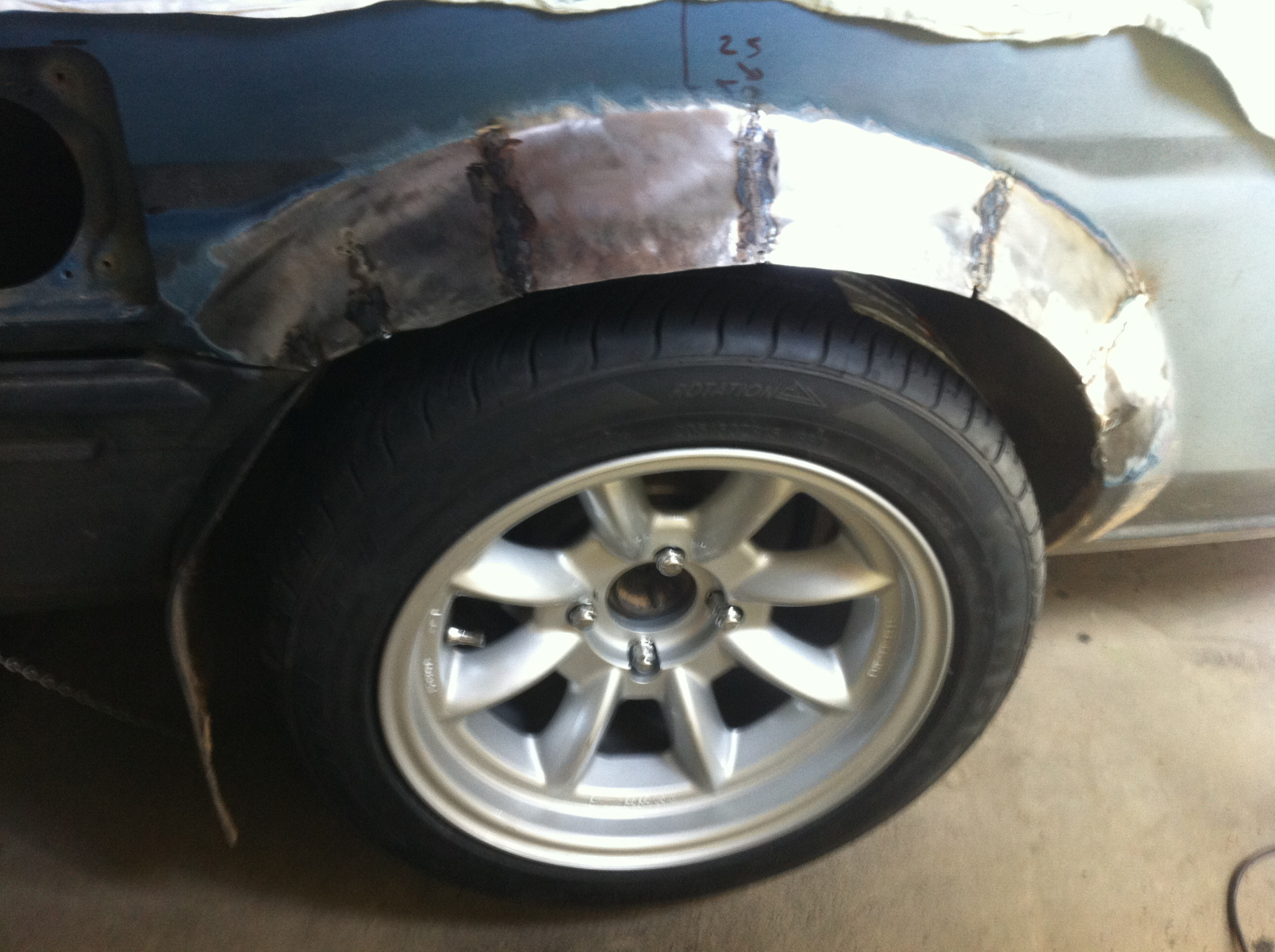

  • Performance Wheels Superlite 15″ x 8″ GTR (-4 offset) rims
  • Khumo KU31 tires (205/15/50)

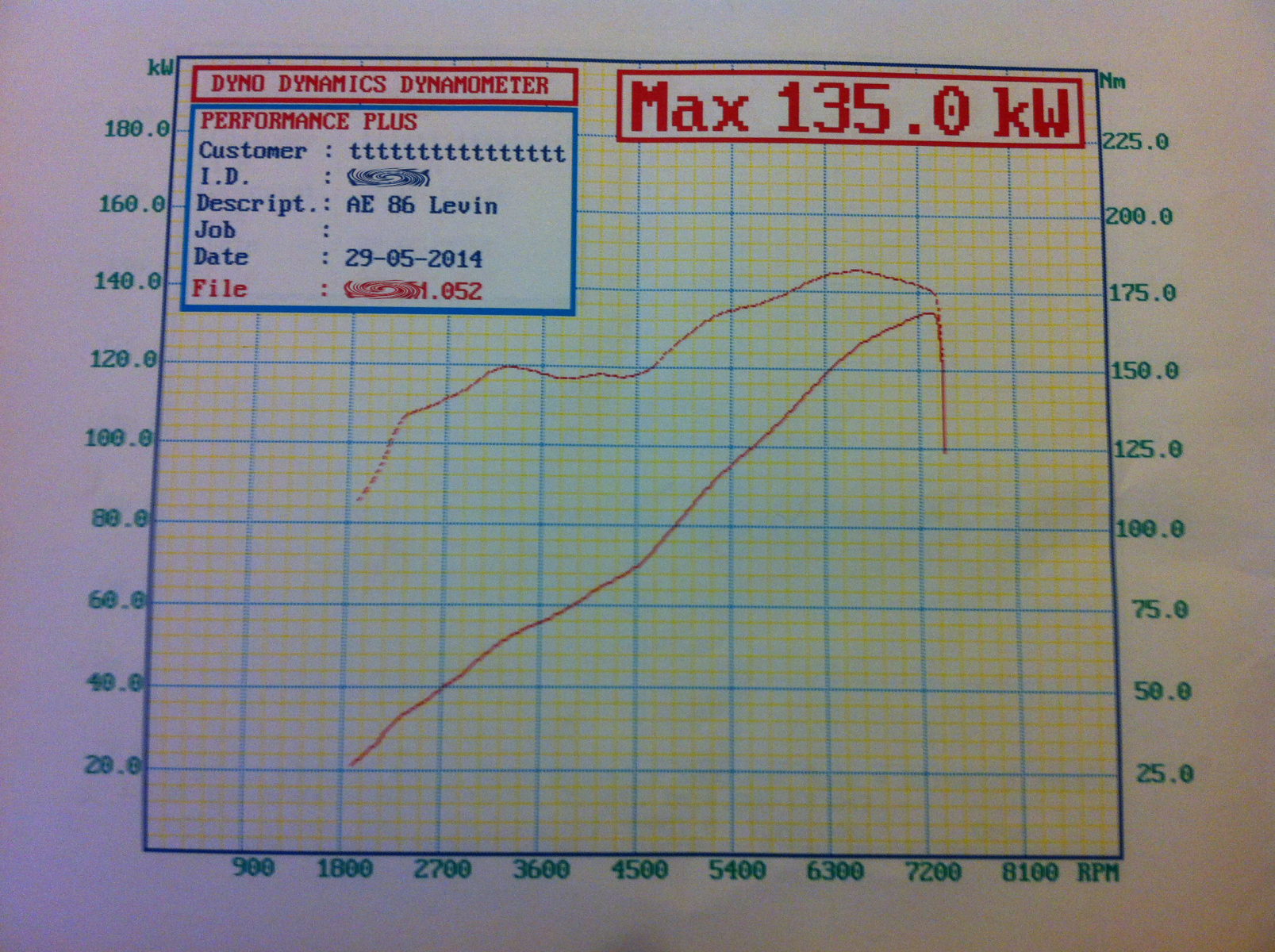

Current Figures

  • Weight: 1016kg

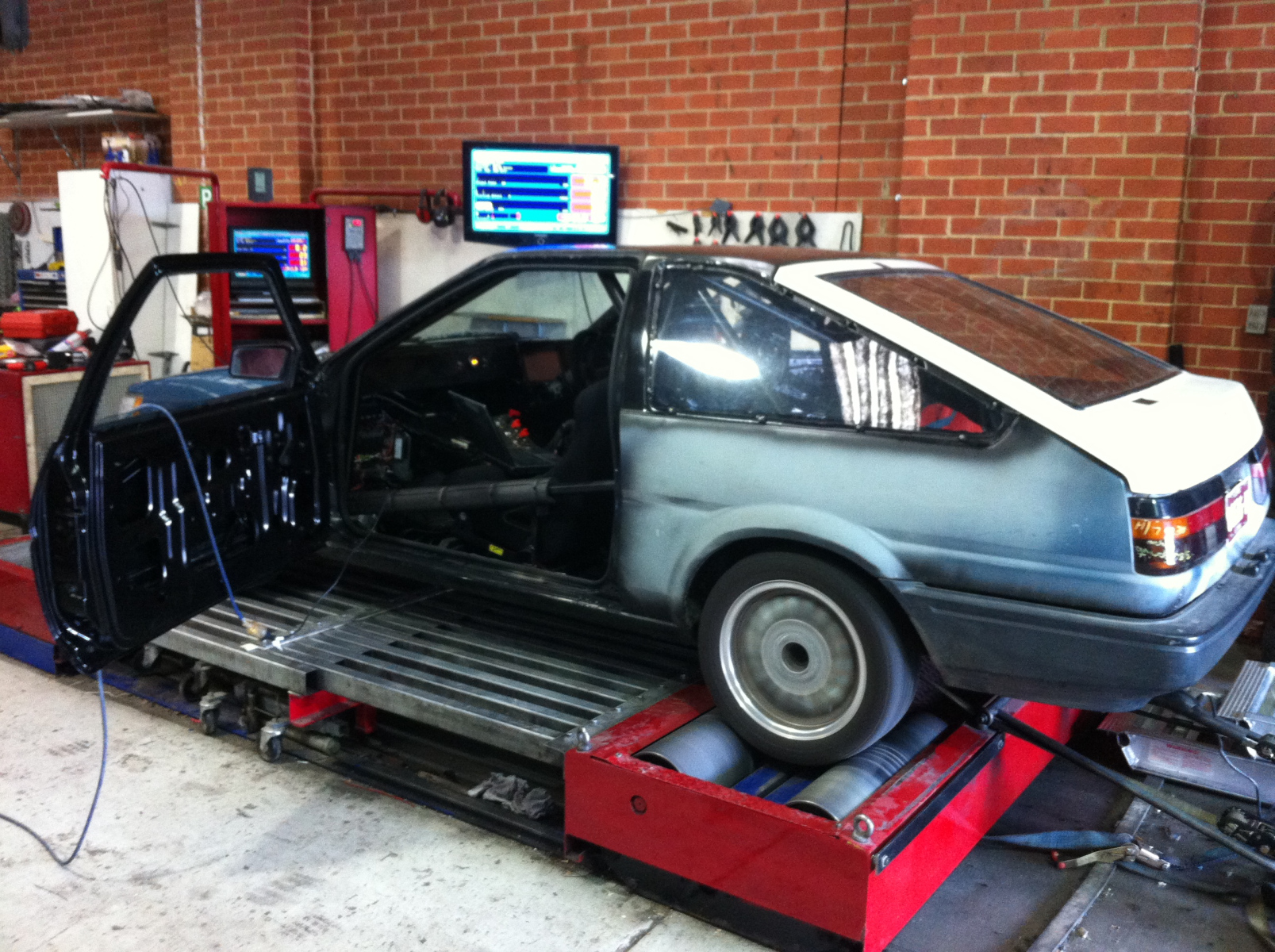

  • Power: 135rwkw @ 7300rpm
  • Torque: 180nm @ 6500rpm
